Exhaust Fan Hinge Kit Installation for Hamilton Kitchens

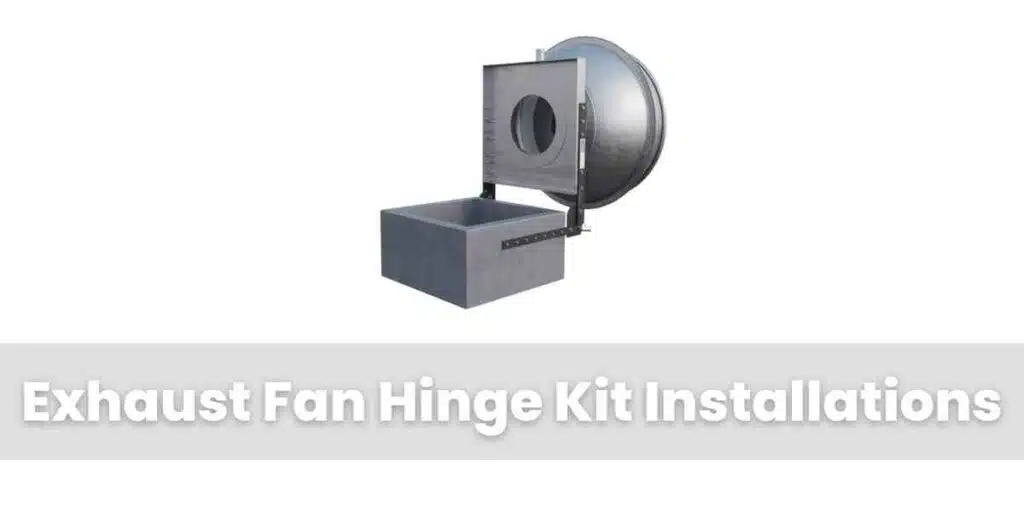

An exhaust fan hinge kit is a hinged base fitted between a rooftop kitchen exhaust fan and the curb it sits on, so the fan can be tilted clear of the duct opening instead of being unbolted. Access is the whole point. NFPA 96 requires the fan housing and the duct below it to be cleaned, and a fan bolted flat to the curb cannot be cleaned properly without being disconnected and re-seated every single visit. A hinge kit is a one-time fix that turns that into a lift. Hamilton Hood Cleaning installs hinge kits with a restraint cable and quotes them after a free walk-through of the roof.
Why fan access is a compliance problem before it is a cost problem
NFPA 96 requires the exhaust fan and the duct below it to be cleaned, so a fan nobody can lift is a fan nobody can honestly certify.
The rooftop fan is where a half-cleaned system gives itself away. Grease condenses on the blower wheel, on the inside of the housing, and on the top of the vertical riser directly beneath it. None of that is reachable from inside the kitchen. It is reachable from the roof, and only if the fan comes up off the opening.
When the fan is bolted flat to the curb, a cleaner has exactly two options. Skip it, and the certificate covers a system that was never fully cleaned. Or break the electrical connection, unbolt the fan, lift it aside, clean, then re-seat and re-connect it. The second option is the honest one. It is also slower, riskier on a roof, and it gets charged for every time.
Bolted-down fan versus hinged fan base in a Hamilton kitchen
The difference between a bolted fan and a hinged one shows up four times: in what can be cleaned, in what each visit costs, in how safe the roof work is, and in what the certificate can honestly say.
| Factor | Fan bolted flat to the curb | Fan on a hinged base |
|---|---|---|
| Cleanability | The blower wheel, the housing interior, and the top of the riser stay closed off unless the fan is fully disconnected. | The fan tilts back and the duct opening is exposed, so the housing, wheel, and riser are all reachable. |
| Labour per visit | Disconnect, unbolt, lift aside, clean, re-seat, re-connect. Repeated at every scheduled cleaning, and priced accordingly. | Release the latch, tilt, clean, lower. The access step stops being a line item. |
| Roof safety | A free fan housing has to be set down somewhere on the roof, near an open duct, often in wind. | The fan stays attached and restrained by a cable through the whole operation. Nothing is ever loose on the roof. |
| Roof and curb wear | Repeated unbolting and re-seating works on the curb flashing and the fasteners over the years. | The base stays fixed. The moving joint is the hinge, which is designed for it. |
| What the certificate can say | Either the fan was genuinely disconnected and cleaned, or the certificate covers less than it appears to. | The fan is cleaned and photographed on every visit, so the record covers the full exhaust path. |
The payback is straightforward arithmetic on your own interval. A kitchen on a quarterly schedule pays the disconnection charge four times a year, every year. A hinge kit is paid once. Ask any contractor to price the same scope both ways and the gap is visible on the quote.
What a proper hinge kit installation includes
A complete installation is a hinged base sized to the curb, a restraint cable, a weathertight seal at the curb, and a fan that latches down and seats flat when closed.
The base is matched to the curb footprint and the fan, because a hinge that does not suit the curb either fouls on the flashing or leaves the fan sitting proud when closed. A fan that does not seat flat leaks, and a leaking fan curb puts grease straight onto the roof surface, which is the problem covered on the rooftop grease containment page.
The restraint cable is the safety element and it is not optional. It limits how far the fan can travel when tilted and holds it if a gust catches it or if someone lets go. On the exposed roofs common along the bayfront and on downtown buildings, wind is the routine hazard rather than the unusual one.
The electrical side matters too. The point of hinging a fan is that the power connection is never disturbed, so the wiring and any flexible conduit have to have enough slack and enough protection to move with the fan without chafing. If that is not right, the installation has solved the mechanical problem and created an electrical one.
Where hinge kits matter most across Hamilton
Roof access shapes the case for a hinge kit more than kitchen size does, and Hamilton has two very different kinds of roof.
On converted storefronts along James Street North and King William Street, the riser is short and the roof is small and close to the fan. Working room is limited, and there is nowhere good to set a disconnected fan housing down. A hinged base means nothing has to be put anywhere.
On the low-rise strips of Concession Street, downtown Dundas, and Ancaster village, the roof is reached by ladder rather than by an interior stair. Every tool and every component that has to come up or go down a ladder is a separate risk and a separate delay. Hinging the fan removes most of that traffic.
Downtown towers and multi-tenant buildings add one more factor. A shared riser serves several kitchens, so the fan at the top of it carries the whole building grease load and needs opening more often, not less.
Work is scheduled overnight and between service hours in all of them, so a kitchen does not lose a shift. Details of what happens below the roof are on the hood vent cleaning page, which covers cleaning the fan itself, and on the kitchen exhaust cleaning page for the duct runs and access panels.
How much does a hinge kit installation cost in Hamilton
Hinge kit installation is quoted per site after a free walk-through, because the price depends on the curb, the fan, and how the roof is reached rather than on a list price.
Three things move the number. The curb footprint and fan size determine the base. Roof access determines how the work is staged, and a ladder-only roof is a different job from a building with interior access. The condition of the existing curb and flashing determines whether anything has to be made good before the base goes on.
For context on the recurring side, exhaust cleaning itself starts from $385 per visit for a single-hood kitchen and from $725 per visit for a multi-hood kitchen of two to four canopies, with campus, hospital, contract-catered, and multi-tenant sites quoted after a walk-through. The full breakdown is on the cost of exhaust cleaning guide. A written quote comes back within 24 hours and the invoice matches it. Proof of WSIB coverage and liability insurance is supplied before work begins.
Call 289-796-0840 or book through the contact page. If you are not sure whether your fan already lifts, that is exactly what the free walk-through answers.
Exhaust fan hinge kits: frequently asked questions
What operators ask before fitting a hinged base to a rooftop fan.
Does NFPA 96 require a hinge kit?
NFPA 96 requires the exhaust fan and the duct beneath it to be accessible for cleaning and inspection, not a hinge kit specifically. A hinged base is the practical way most kitchens meet that requirement, because the alternative is disconnecting and re-seating the fan on every visit. What the standard cares about is whether the fan and the riser below it can actually be cleaned. How the access is achieved is up to the building.
How do I know if my rooftop fan can already be lifted?
A fan on a hinged base has a visible hinge along one edge of the curb, a latch or clamp on the opposite edge, and usually a cable running from the fan to the curb. A fan bolted flat has fasteners all the way around and nothing restraining it. If the answer is not obvious from the roof, a free walk-through settles it, and it is worth settling before the next scheduled cleaning rather than after.
What is the safety cable for?
The restraint cable stops the tilted fan from travelling too far or coming free while it is open. It matters most in wind, which on an exposed bayfront or downtown roof is normal conditions rather than bad luck. A hinge kit fitted without a restraint cable is an incomplete installation, and it is the first thing worth checking on any hinge kit somebody else installed.
Will hinging the fan cause a leak at the curb?
Not when the base is sized to the curb and the fan seats flat and latches when closed. Leaks come from a fan that sits proud because the base does not suit the curb, or from a seal that was never made good after installation. A fan that does not seat properly puts grease onto the roof membrane, so the seal check is part of finishing the job rather than an extra.
Does a hinge kit reduce what hood cleaning costs?
It removes the disconnection and re-seating step from every future visit, which is the part of a rooftop scope that gets charged repeatedly. A kitchen on a quarterly interval pays that step four times a year. The hinge kit is paid once. The other saving is less obvious and larger: the fan actually gets cleaned, so the system does not quietly drift out of compliance between visits.
